Eos 1.5em

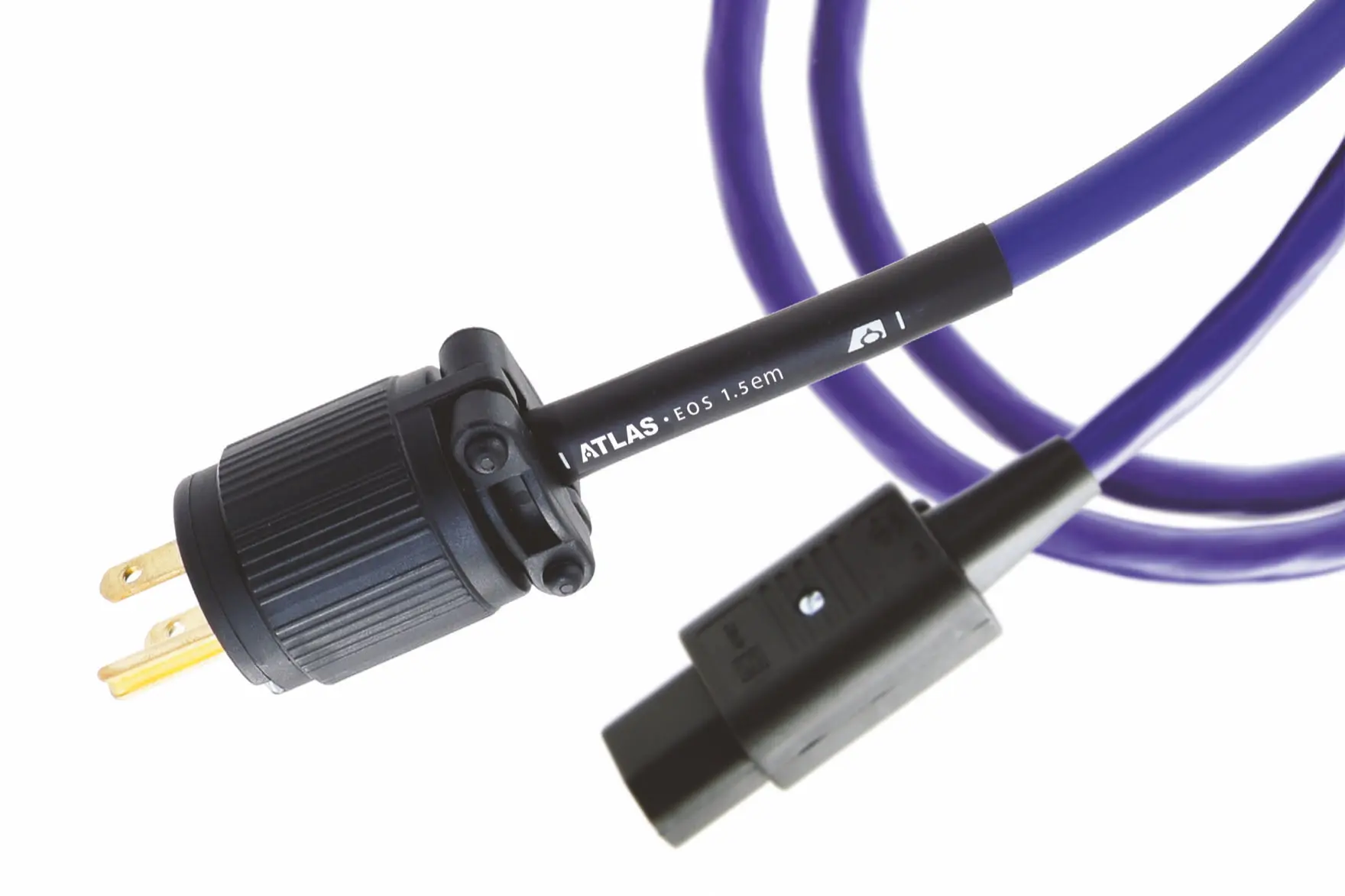

Screened OFC Power Cable.
The quality of available mains power has a real impact on the performance of hi-fi & home theatre systems. Ensuring a clean power supply to your components requires cables designed to be resistant to both external RF interference and generated noise on the mains itself.
The proliferation of wi-fi networks, BlueTooth devices, mobile phones, low voltage light bulbs & dimmer switches are among the worst noise-generating culprits.
Eos power cables are designed specifically to allow your equipment to perform optimally. The Eos 1.5em Power Cable uses OFC conductors in a sophisticated carbon-loaded fully-screened configuration, implementing our ‘dd’ (Dual Drain) screening to effectively filter out harmful incoming radio frequency and power contamination.
The ‘dd’ configuration utilises twin symmetrical drain wires connecting the screen to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the screen. The benefits are a consistent low impedance load to the ground connection on the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).
For more detailed information on Eos power products, see our Eos overview or refer to the Power white paper in our Technical Library.
Key Features. Essential characteristics of this product.
Technology
Engineered
Performance
Atlas Essentials +
Product Specifications.
| Construction | Multi-core |
| Conductor | 1.5mm² Tin-plated OFC |
| Dielectric | Stabilised PVC |
| Screen | Carbon-loaded hybrid, Dual Drain |
| Outside Diameter | 9.5 mm |
| Colour/Finish | Purple |
| Current capacity | 20A |
Product Options. Please specify when ordering.
C7
C13
IEC Connector

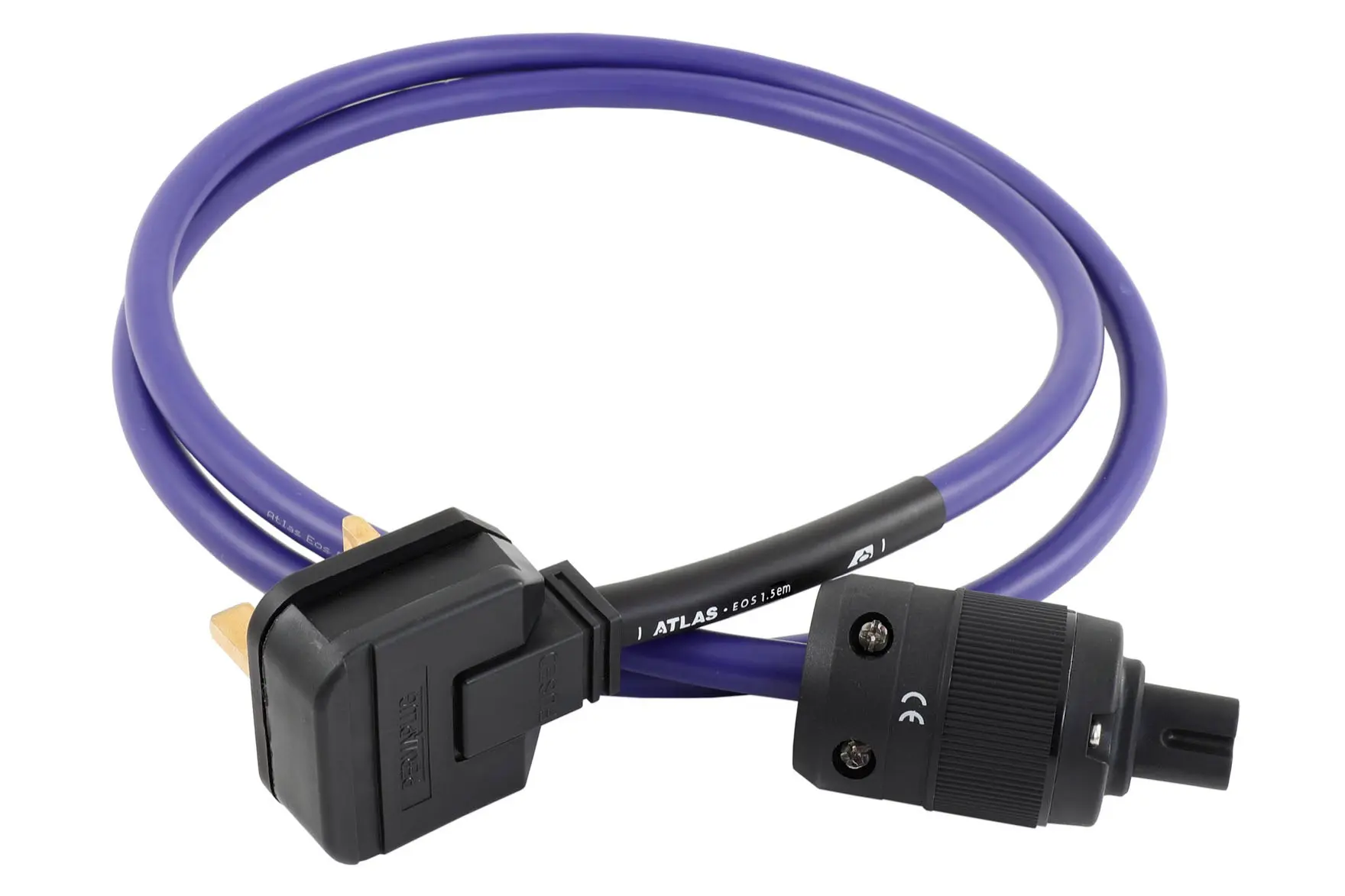

At the equipment end of the power cable, IEC connector options are C13 or C7 (‘figure of 8’).
UK
Schuko
Nema
The Eos Power Management System
Designed to let you hear what your equipment’s really capable of. Eos power cables and Eos Modular distribution blocks are available in UK 13A, Schuko & Nema variants. Some Eos products also offer the option of Australian/New Zealand types.
Your local Atlas dealer/distributor will supply Eos products with the appropriate plugs for your market.
Reviews. What the specialist media say… (Eos dd refers to the previous version of this product).
The silences between musical phrases are inky black, highlighting the very low noise floor with the Eos dd cable installed. The detail and imaging of the harpsichord is superb and there is no evidence of any mains-borne interference finding its way into the preamp or indeed the sensitive phono stage. This makes it a great upgrade from many low-cost mains leads boxed with equipment.
