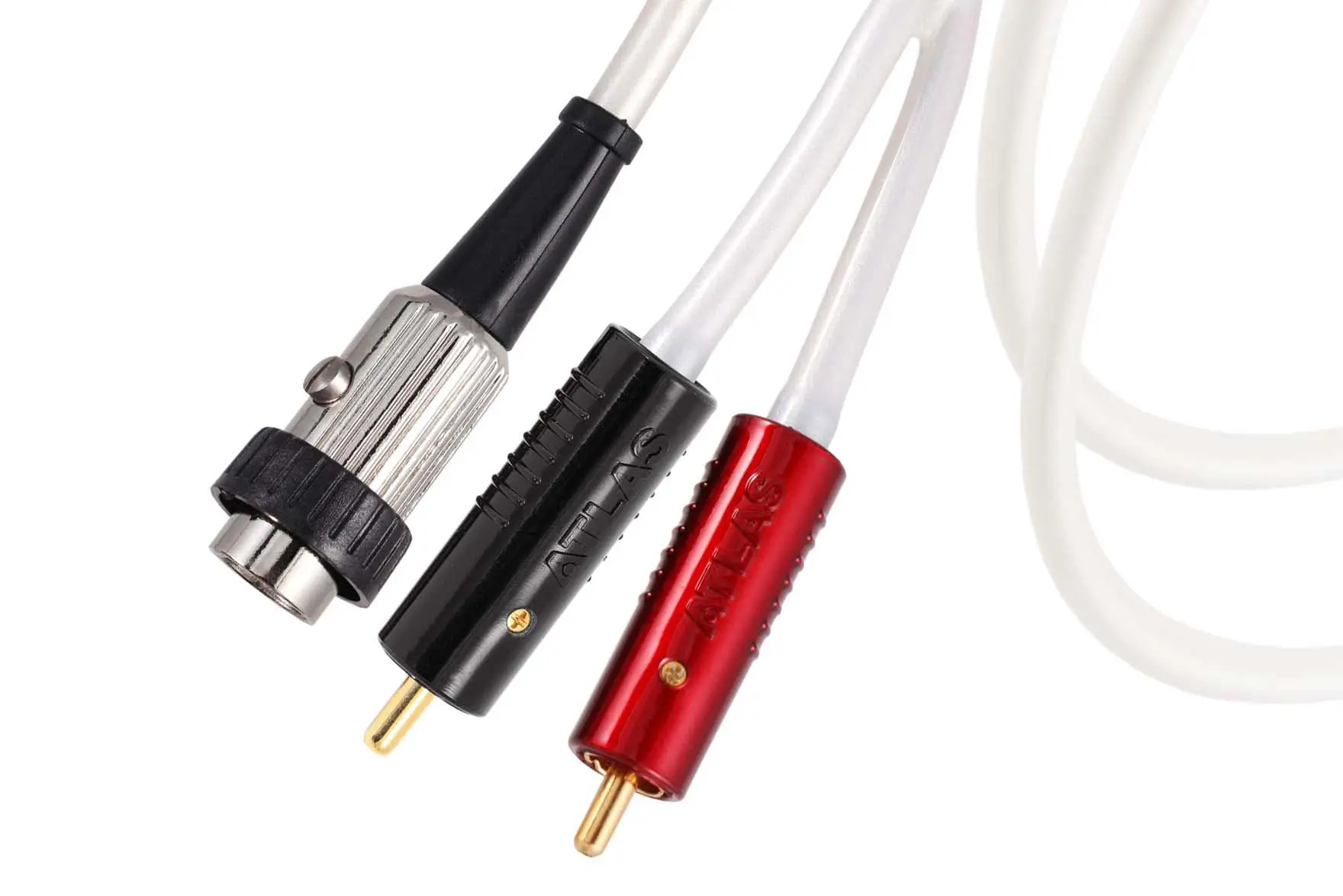

Element DIN – Achromatic X RCA
Wide-bandwidth OFC Copper interconnect.
The Element DIN–Achromatic X RCA is an OFC interconnect utilising a shielded four-core construction which ensures excellent immunity to interference and noise.
Designed to achieve the highest performance levels when integrating DIN-equipped products into a system which predominantly uses RCA connectors.
The result is an accurate, natural sound which we believe, like the Element Achromatic X RCA, defines a new performance standard at its price point.
The cable is fitted with a 5 Pin ‘locking’ DIN connector. Phono connectors are the latest generation of our cold-weld solder-free Achromatic X RCA plug.
DIN–DIN and DIN-XLR versions are also available.
Key Features. Essential characteristics of this product.
Engineered
Performance
Atlas Essentials +
Product Specifications.
| Construction | Multicore + screen |
| Conductor | OFC |
| Dielectric | PEF |
| Screen | OFC braid |
| Capacitance | 35.97 pF/m |
| Inductance | 0.964 µH/m |
| Resistance | 0.0809 Ohms/m |
| Outside Diameter | 7.0 mm |
| Colour/Finish | Pearl White |
RCA
DIN
XLR
Termination Options.
DIN–DIN and DIN-XLR versions are also available.
