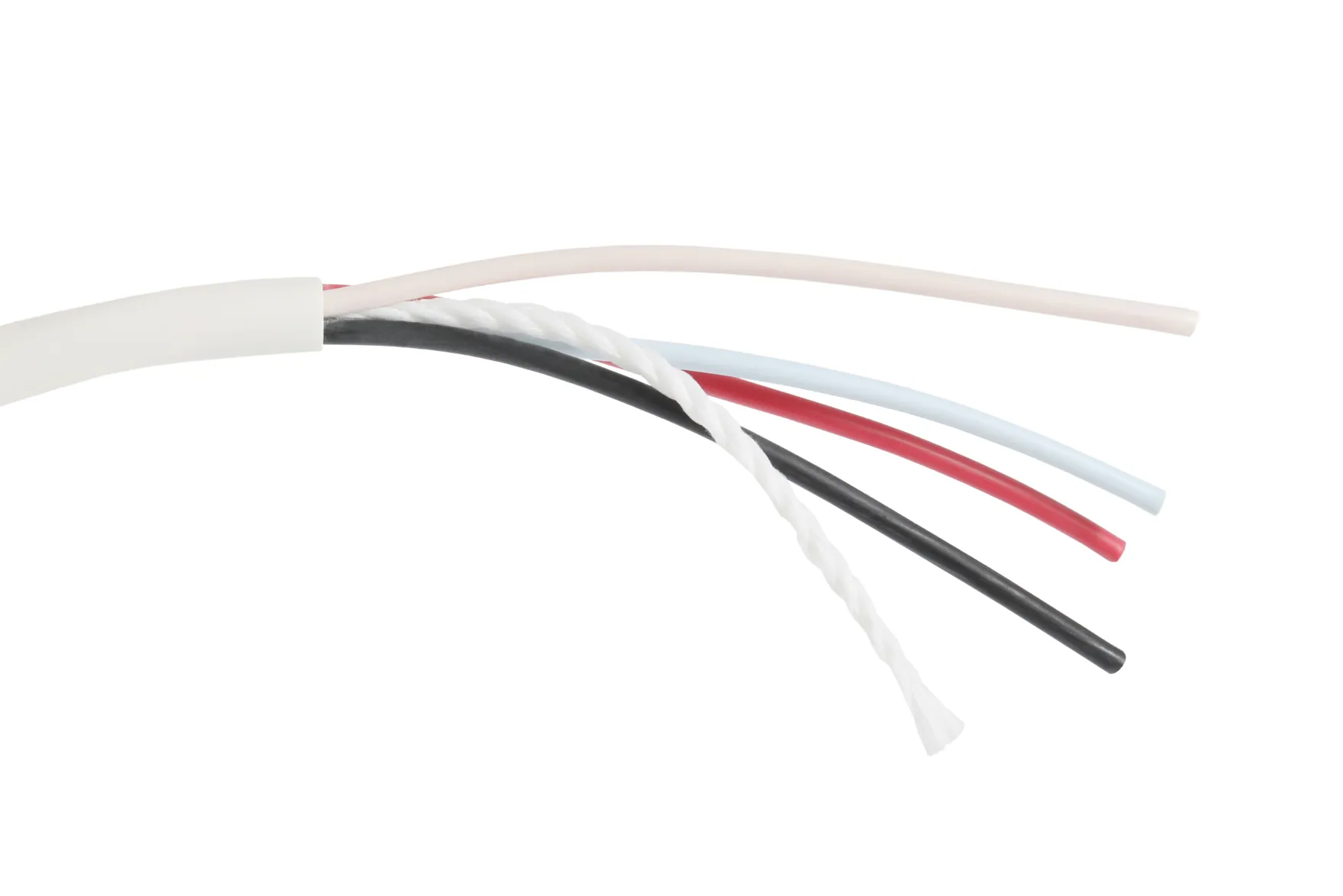

Element Speaker 4×1.6
Installation-grade double-insulated OFC speaker cable.
The Element Speaker 4x1-6 installation-grade halogen-free flame-retardant loudspeaker cable is an excellent choice for installations in high-quality domestic as well as many public/commercial building projects where LSZH materials are required.
The special FRHF PE jacket adds both ruggedness and flexibility facilitating easy installation.
KEY CHARACTERISTICS:
- Twin twisted-pair loudspeaker cable – halogen free & flame retardant.
- Gauge: 4×1.6mm² / AWG 15.
- Marking: Atlas Element 4x1.6 LSZH CE UKCA + Meter mark.
- Country of origin: EU.
- EAN Code: 5056453550178.
- Double insulated, approved for 100V systems.
- Low friction jacket to aid installation.
SAFETY AND EMISSION TESTING:
- Standard CPR (Construction Products Regulation); Test method EN 50399:2011 + A1:2016 and EN 60332-1-2:2004 + A1:2015 + A11:2016 + A12:2020.
- Fire Retardancy Performance: DCA, Smoke protection: s1, Flaming droplets: d2 Reaction to fire: Dca-s1, d2.
- Report 0402-CPR-1247967-2.
Product Specifications.
| Conductor | OFC (Oxygen-Free Copper) ×4 |
| Cross-Section Area | 4×.6mm² / AWG 15 |
| Dielectric | PE FRHF, Red/Blue & Black/White |
| Conductor Diameter | 2.7 mm |
| Jacket | PE FRHF, round |
| Inductance | 0.40 µH/m |
| Resistance | 0.108 Ohms/m |
| Rated Voltage | 100v |
| Outside Diameter | 7.7 mm |
| Colour/Finish | White |

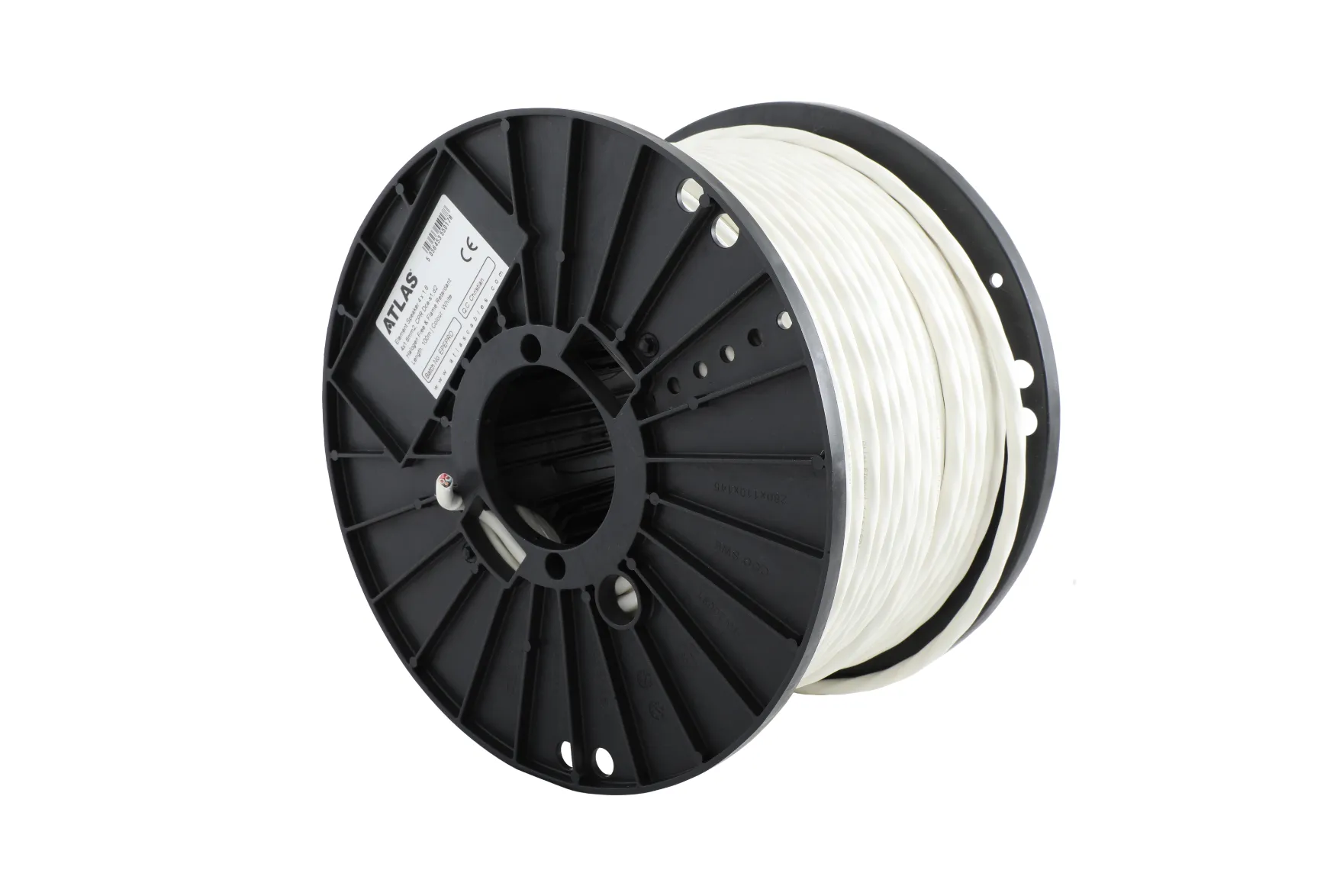

| Packing | Reel, 100 m |
| Weight | 10.3 kg |
