Element Speaker 2.5S
Installation-grade halogen-free flame-retardant OFC speaker cable.
The Element Speaker 2.5S screened installation-grade loudspeaker cable is an ideal choice for installations in high-quality domestic as well as many public/commercial building projects where LSZH materials and long-length performance are required.
The special FRHF PE jacket adds both ruggedness and flexibility facilitating easy installation.
KEY CHARACTERISTICS:
- Screened & twisted Loudspeaker cable - halogen free & flame retardant.
- Gauge: 2×2.5mm² / AWG 13.
- Marking: Atlas Element 2.5S LSZH CE UKCA + Meter mark.
- Country of origin: EU.
- EAN Code: 5056453550185.
- Screened – Dual drain.
- Double insulated, approved for 100V systems.
- Low friction jacket to aid installation.
SAFETY AND EMISSION TESTING:
- Standard CPR (Construction Products Regulation); Test method EN 50399:2011 + A1:2016 and EN 60332-1-2:2004 + A1:2015 + A11:2016 + A12:2020.
- Fire Retardancy Performance: DCA, Smoke protection: s1, Flaming droplets: d2 Reaction to fire : Dca-s1, d2
- Report 0402-CPR-1247967-2.
Product Specifications.
| Conductor | OFC (Oxygen-Free Copper) ×2 |
| Cross-Section Area | 2×2.5mm² / AWG 13 |
| Dielectric | PE FRHF, + Red & Black |
| Conductor Diameter | 3.25 mm |
| Screen Connection | Dual Drain; tin-plated OFC |
| Screen | Alu/PET FRHF |
| Jacket | PE FRHF, round |
| Inductance | 0.40 µH/m |
| Resistance | 0.0068 Ohms/m |
| Rated Voltage | 100v |
| Outside Diameter | 7.9 mm |
| Colour/Finish | White |

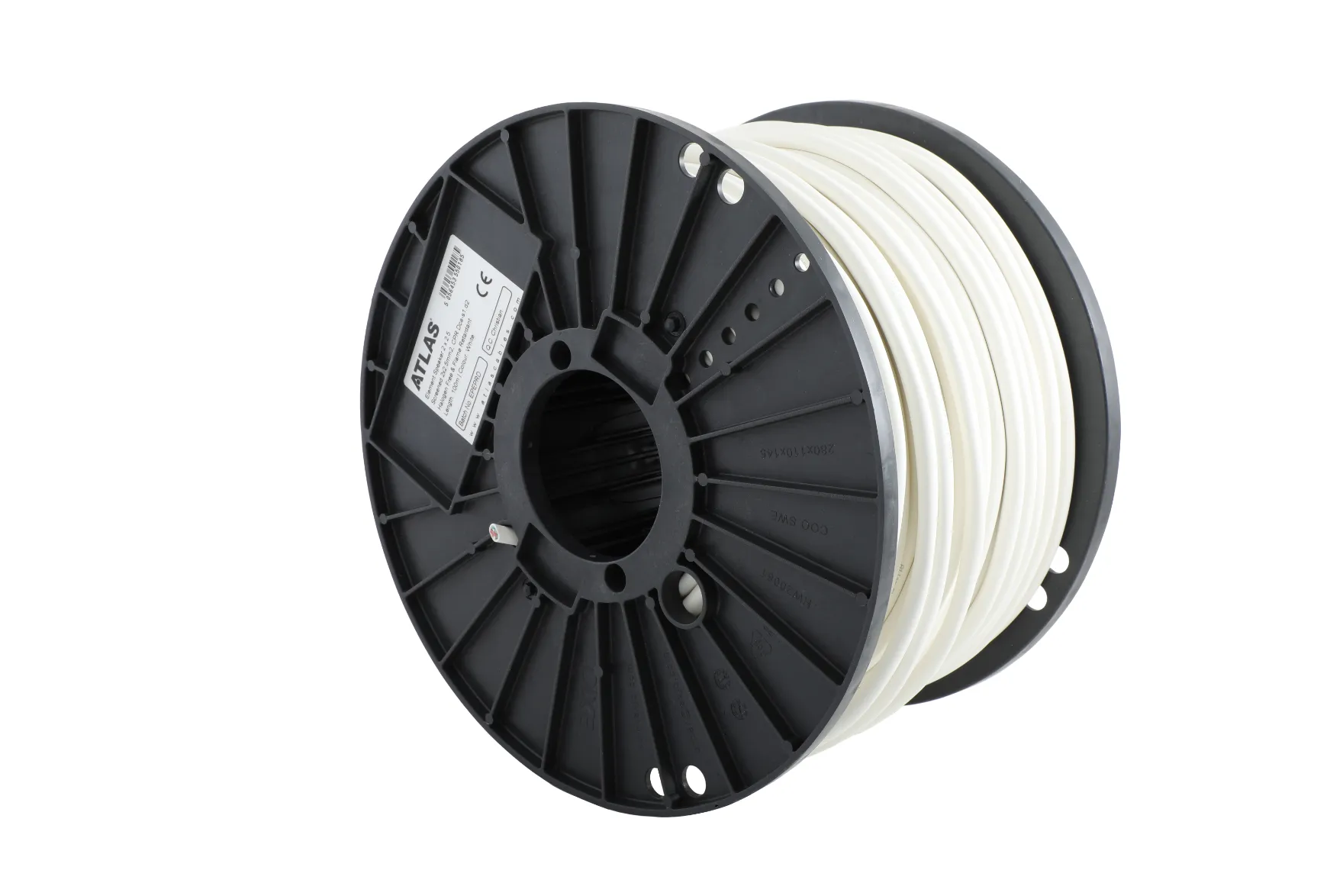

| Packing | Reel, 100 m |
| Weight | 9.4 kg |
